Novus TxIsoLoop - Loop Powered Isolators - NV-8813020100/NV-8813020200

Home >> Process Controls >> Transmitters >> Signal Isolators >> Novus TxIsoLoop - Loop Powered Isolators - NV-8813020100/NV-8813020200

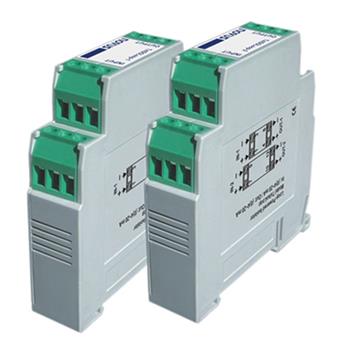

Novus TxIsoLoop - Loop Powered Isolators

(click image to enlarge)

These Loop isolators provide signal protection by electrically isolating the input signal from the output. They simplify your application and avoid the undesirable ground loops by providing single and dual loop galvanic isolation. The 0/4-20 mA input is measured and an identical isolated signal is reproduced at the output. Power is drawn from the 0(4)-20 mA input loop, thus no auxiliary power or an external power supply is need.

Features:

Models for 1 or 2 channels
No need for power supply
Powered from the input loop
Calibration free. High accuracy
Input/output galvanic isolation

Specification:

Input Signal (INPUT): 0 to 20 mA; 4 to 20 mA (check minimum current for proper operation)
Maximum Input voltage (Vin max.): 32 Vdc
Voltage Drop (Vdrop): < 3 Vdc
Output Signal (OUTPUT): 0(4) to 20 mA
Max. Load (RL): 1450 R
Accuracy: 0.2 % FS @ 0 a 60 °C / RL= 250 R; 0.3 % FS @ -20 a 75 °C / RL= 250 R
Operating current: > 0.1 mA
Overload: < 40 mA; < 32 Vdc
Response time: 2 ms @ RL= 250 R
Isolation: 3000 Vac / 10 s; 240 Vac continuous
EMC: EN 61326-1
Ambient temperature range: -20 to + 75 °C
Humidity: 20 to 90 % RH
Protection: IP40
Wire gauge for connections: 0.14 to 1.5 mm²
Recommended torque: 0.8 Nm
Terminal blocks injected in Polyamide

Technical Information:

Novus TxIsoLoop Manual

Additional Information:

PART# DESCRIPTION USD$ PRICE

NV-8813020100	TxIsoLoop-1 Loop-powered DIN Rail Isolator, 4-20 mA in / 4-20 mA out (1-channel)	$ 126.00
NV-8813020200	TxIsoLoop-2 Loop-powered DIN Rail Isolator, 4-20 mA in / 4-20 mA out (2-channels)	$ 224.00

PLEASE NOTE: No payment is involved, this system is designed to give you an online quote only, please call 416-261-4865 or fax 416-261-7879 if you would like to place an order.
