Gatekeeper for Wall Mount or Tripod

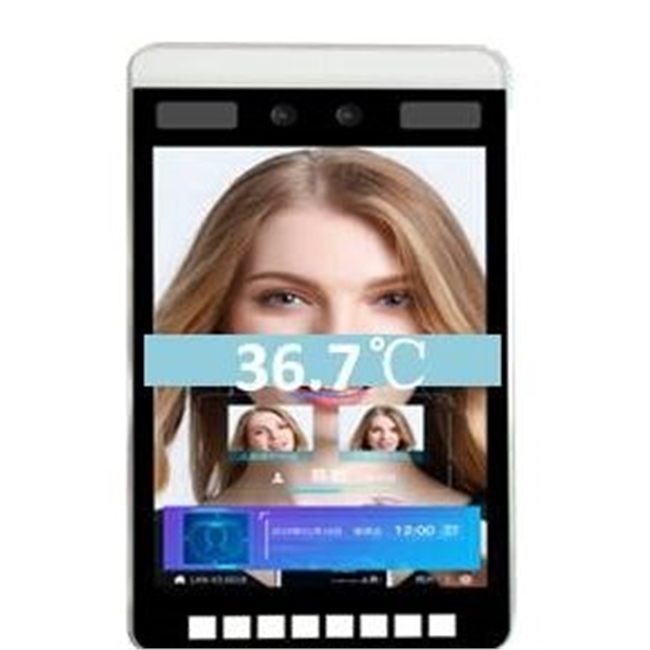

  • Gatekeeper for Wall Mount or Tripod Gatekeeper for Wall Mount or Tripod

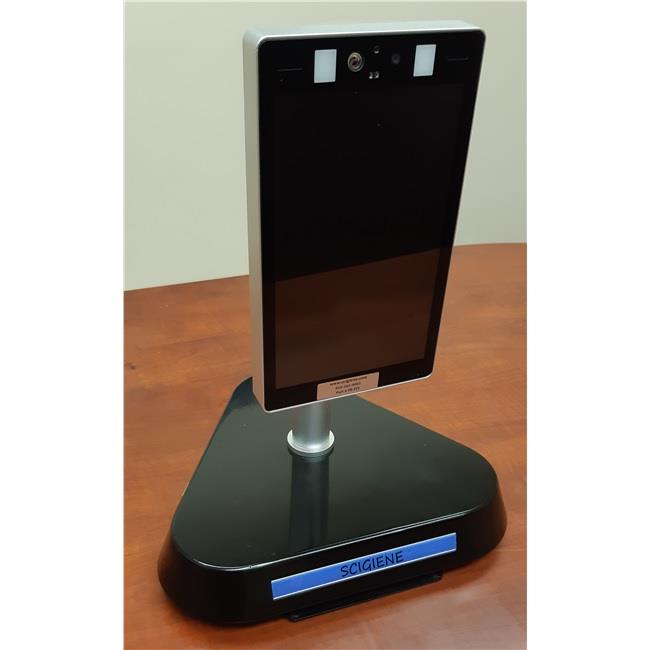

  • Gatekeeper with Pedestal Mount Gatekeeper with Pedestal Mount

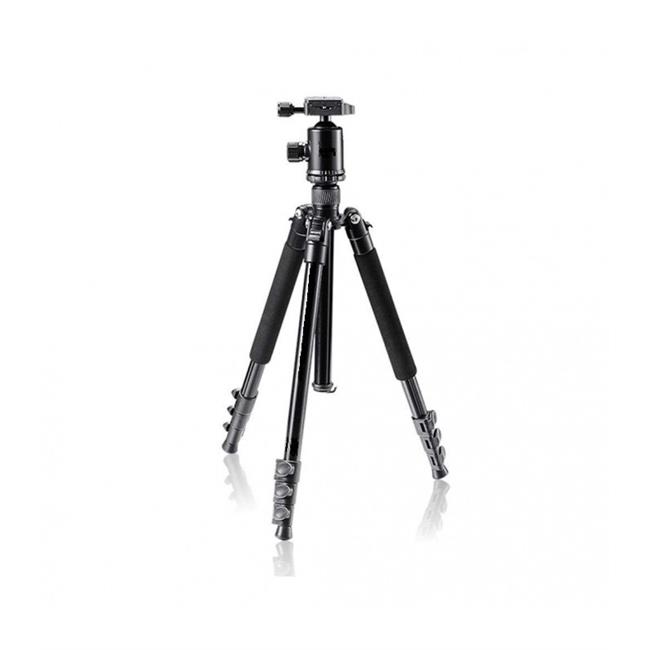

  • Tripod - carrying case included Tripod - carrying case included

Gatekeeper Facial Recognition System


  • Part #:FR-ITS-XX
  • Weight:1kg
  • Dimensions:215 x 125 x 20
  • Units:mm
  • Availability: Inquire

Price: $1,034.48
Price: $1,396.55


Description

Introducing the Scigiene Gatekeeper Facial Recognition System.

The Gatekeeper is an advanced yet very cost effective automated Facial Recognition System. It utilizes advanced imaging and thermal scanning combined with Facial Recognition software to give the most accurate facial recognition system possible.  Aside from Facial recognitions the Gatekeeper system offers some unique features that are relative to our current times. This offers several major advantages relative to regular entry screening systems


  • No contact or close up measurement is needed
  • It offers MASK identification and can tell users to put on a MASK or even be integrated to controls to lock/unlock doors and gates.  Thus, enforcing MASK wearing protocols.
  • The advanced high resolution imaging, thermal imaging and algorithms contained in the Gatekeeper are far more repeatable and accurate than other entry screening options.
  • No user error that is common when using Hand held I.R.s will occur if using the optional temperature screening.

Cost savings are immense here. While this costs more than a typical entry pass card or password based system it also eliminates the extra labour involved, it prevents unauthorized card or password use (there are none!) and the Gatekeeper can even be integrated to control gates and doors. It can give an audible alert to indicate non authorized users. If persons have been quarantined or banned, they can be blocked from entering.


Unlike regular Forehead IR thermometers, the Gatekeeper utilizes advanced Facial recognition software to prompt users to adjust their positions and then takes a picture using advanced thermal imaging cameras to specifically target the user’s forehead for highly accurate and repeatable readings.


Please contact Scigiene for more details on integration options.


Features:

  • Uses precise Precision optical and Thermal Imaging sensors
  • The FR-ITS can be integrated with existing security system or left as a stand-alone device
  • Allows for simple plug and play installation
  • Increases entry safety and security of staff as close-up contact is not required as is need for use with hand held thermometers, I.D cards checks or even tap and swipe cards.
  • Improves the speed of entry and building exits
  • Optional alarm and video recording
  • Supports temperature overlay, picture overlay
  • Supports mask detection
  • Built-in FACE ++ deep learning face recognition algorithm. Stable and reliable
  • Support up to 50,000 face databases with internal memory; <100 ms fast capture rate
  • 8 inch HD LCD display
  • Local audible alarm output
  • Fully user configurable, configure multiple usage modes
  • Ultra-thin metal shell
  • Can record identification information and temperature information, save traceability
  • Excellent environmental adaptability, adapt to low light and strong backlight, supports automatic face exposure
  • Support Weigand protocol, can directly drive access control and control various gates
  • Rich hardware interface, integrated 100M Ethernet interface, audio interface, Weigand interface, relay interface, USB etc.
  • Supports 2D, 3D digital noise reduction
  • Low power consumption, main board power consumption is as low as 5 watts
  • Temperature detection range 35~42
  • High temperature accuracy +-0.1C
  • 1 second response

Specifications

  • 2MP Face recognition + temperature detection
  • 8 inch smart camera system
  • Display: 8 inch LCD
  • RAM: 32G
  • Thermal Sensor: Thermal imaging infrared temperature sensor
  • Temperature Measurement Range: 35~42
  • Precision:  ±0.1
  • Detect Distance: 0.4m~0.7m
  • Number of Face Bases: 50,000 (sheets)
  • Recognition Speed: ≤300ms
  • Live Detection: supported
  • Mask Detection: supported
  • Temperature Alarm: supported

 Interface

·         Power: DC12V

·         Network: 1ch10/100BaseT Ethernet RJ45 interface

·         Wiegand: 1ch Wiegand output interface

·         Switch: 1ch relay output (rating of relay)

·         MIC: Built-in

·         Audio: Built-in 2ch audio output

·         Working Humidity: -10°C ~50°C



NOTE: Please contact Scigiene directly for a copy of the Product Manual

Additional Information

Available Models:

Part #DescriptionPrice (USD)
FR-ITS-WM
Gatekeeper Facial Recognition System with Wall Mount
Call for Pricing
FR-ITS-TM
Gatekeeper Facial Recognition System with Tripod
Call for Pricing
FR-ITS-PM
Gatekeeper Facial Recognition System with Pedestal Mount
Call for Pricing
