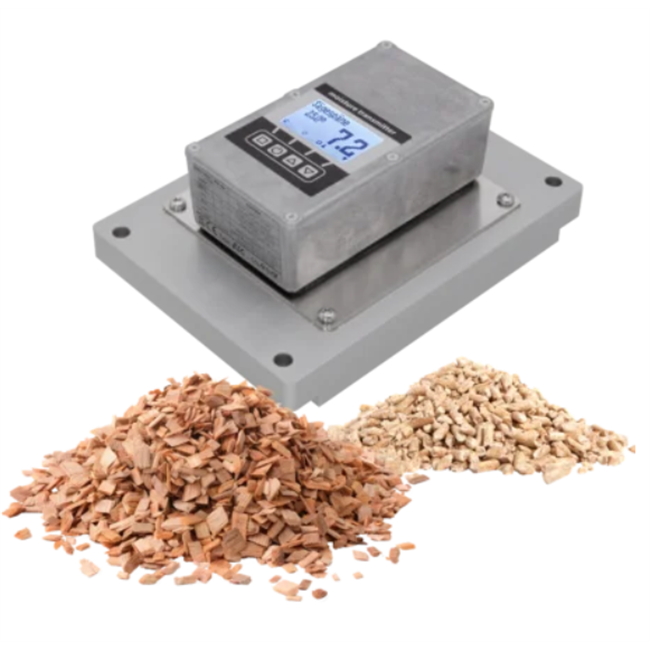

Fully calibrated system for continuous real-time water content determination of wood chips, pellets and other materials.

Features:

• Very large measuring range (from 2% water content)
• Ready calibrated system
• Universal sensor for different materials
• Easy to mount
• Increase in efficiency of incineration systems by 3 - 5% by regulating and controlling the water content
• Cost savings due to process optimization
• Also available in high temperature version +5 to + 85°C
• Analog output water content 4 - 20mA

The humimeter BLC Humidity transmitter is characterized by a very large measuring range.  The online water content determination of dry to highly moist material (2 to 60% water content) can thus be carried out without any problems.

The water content is determined in real time during the production process and appropriate control increases the efficiency of the entire system. Moisture measurement of wood chips, shavings and pellets with the humimeter BLC is already calibrated and the assembly is quickly realized. The connection to a controller is carried out using a 4-20mA analogue output.

Specifications
