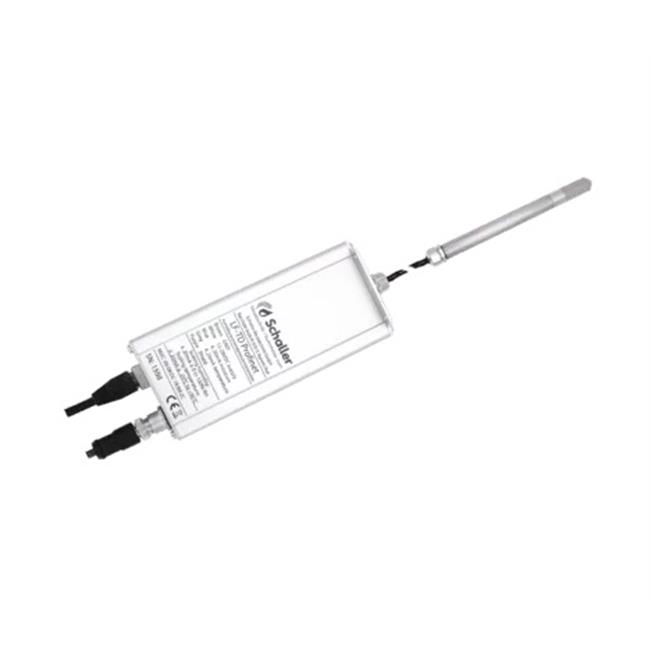

LF-TD Profinet

LF-TD Profinet High Accuracy Air Humidity and Temperature to 90°C Transmitter with Profinet Interface


  • Part #:HM-14555
  • Dimensions:120 x 70 x 32 mm
  • Availability: Inquire

Price: $2,171.09
Price: $3,148.08


Description

The LF-TD is a high accuracy relative humidity and temperature transmitter with Profinet interface for up to +90°C.  It is ideal for building management, weather stations, rack monitoring, server rooms, building automation, warehouses, greenhouses, museum/galleries, and air-conditioned rooms.

Features:

The integrated sensors enable the rapid and reliable detection of even small fluctuations in humidity and their trends, allowing for quick preventative action.  The remote sensor head allows for flexible mounting options, even in hard to reach locations.


The LF-TD transmitter, with its robust and easy to mount aluminum housing, is best suited for permanent installations.

Specifications:

Measuring Range
  • Relative air humidity 0 to 100 %
  • Temperature -20°C to +90°C
Output
  • Digital Output 4 - 20 mA
Accuracy Factory Calibration
  • Relative air humidity 10 to 90%:  ± 2,0 %
  • Temperature +10 to +60°C:  ± 0,3 °C
Operating Temperature
  • Sensor head -20°C to +60°C
  • Electronics -20°C to +85°C
Power Supply
  • Voltage 12 to 29 VDC
  • Current consumption approx. 18 mA
Dimensions and other
  • Dimensions sensor tube Ø 12 x 125 mm
  • Material sensor head Stainless Steel
  • Sensor Head connected to electronics by 0.25 m cable
  • Sensor cap Stainless Steel sinter
  • Material electronics housing anodized aluminum
  • Degree of protection electronics housing IP 54

Required Accessories

Part #: HM-14711
$802.13 (USD)
$1,163.09 (CAD)
HumiSenseWare is a database-based software for easy recording and analyzing of measuring data for th (more...)

Optional Accessories

Part #: HM-13731
$229.18 (USD)
$332.31 (CAD)
Display with keyboard for LF-TD

Part #: HM-13612
$38.20 (USD)
$55.39 (CAD)
Mounting bracket for LF-TD

Part #: HM-10006
$203.71 (USD)
$295.38 (CAD)
This specifically designed cup allows for easy calibration of any humimeter device, With a tube sens (more...)

Part #: HM-10352
$135.22 (USD)
$196.07 (CAD)
Certified calibration ampules - set of 5, 50% r.h. are used to calibrate any capacitance type humimeter device.

Part #: HM-11235
$135.22 (USD)
$196.07 (CAD)
Certified calibration ampules - set of 5, 80% r.h. are used to calibrate any capacitance type humimeter device.

Part #: HM-10005
$135.22 (USD)
$196.07 (CAD)
Certified Calibration Ampoules Set

Part #: HM-12456
$16.55 (USD)
$24.00 (CAD)
Scigiene's HM-12456 Drip catcher for Temperature Transmitter is an optional accessory that can be pu (more...)

Part #: HM-10403
$140.05 (USD)
$203.07 (CAD)

Part #: HM-12011
$292.84 (USD)
$424.62 (CAD)
Special request - flat rate for air humidity transmitter series per order - irrespective of the quantity ordered.

Part #: HM-10249
$45.84 (USD)
$66.47 (CAD)
Stainless steel sinter sensor cap for HM-12004
