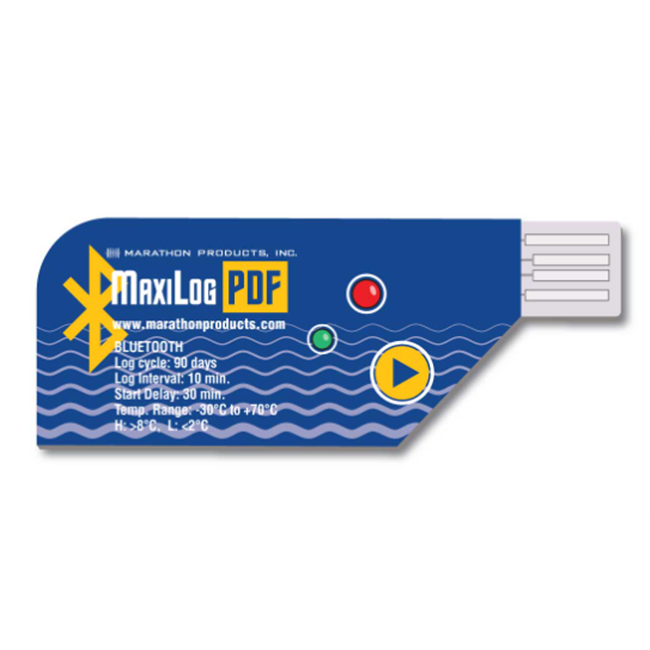

MaxiLog PDF Single-Use Temperature Bluetooth Datalogger


  • Part #:MA0141
  • Weight:Approx. 10g
  • Dimensions:75mm x 28mm x 5 mm
  • Availability: Inquire

Price: $25.00
Price: $33.75


Description

The MaxiLog-PDF Bluetooth Single Use temperature data logger features a small, lightweight, flat design, making it an easy addition to virtually any package without adding bulk and weight. This logger is specifically designed for cold chain temperature monitoring during transportation of medicines, food, chemicals and more. It integrates Bluetooth wireless transmission, utilizes convenient USB port interface and is equipped with PDF generating software. It is IP67 waterproof, as well as GDP and EN12830 compliant.

Features:

  • Log temperature data and generate PDF reports all through the cold chain.
  • BLE Connection through APP. No need to open package during transit to get report.
  • Cost-effective and reliable.
  • Auto generating PDF report through USB, no additional software required.
  • Small, light and flat design
  • P67 waterproof and food compatible
  • GDP and EN12830 compliant

Specifications:

Recording options:
Single use
Temperature range:
-20 to 70 / -4 to 158
Temperature accuracy:
±0.5°C / 0.9°F
Data storage capacity:
15000 readings
Shelf life/ battery:
1 year / 3.0v lithium battery
Recording interval:
10 minutes, customizable
Recording cycle:
Up to 90 days
BLE broadcasting interval/range:
10 seconds / 20m (line of sight)
Start mode:
Manual
Stop mode:
Manual / USB connection/ Date limit
Protection class:
IP67 / NEMA 6
Dimensions:
75 mm x 28 mm x 5 mm (L x W x H)
Weight:
Approx. 10 g
Calibration:
Nvlap NIST traceable
Bluetooth connection:
BLE app (iOS and Android
On-line tracing:
H7 cloud

Additional Information

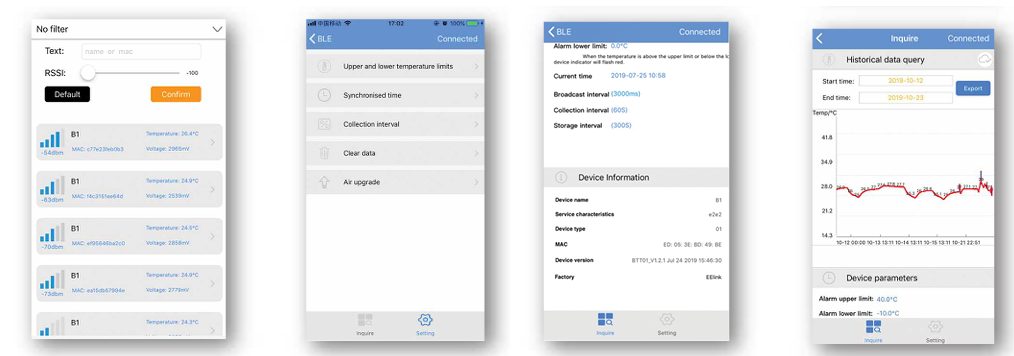

BLE APP

Using the free APP will enable you to scan the broadcast information of unit including temperature, voltage, Mac address, and signal strength. You can search for the device by signal strength, device name, or mac address.

Customizable Parameters

  • Upper & lower temperature limits
  • Synchronised time
  • Collection interval
  • Clear data
  • Temperature units
  • Air upgrade

Reports

  • Export historical data: export data will be sent or stored in csv or pdf format. The file is named with exporting time.
  • Android system data storage: file management/BleExcel/(device address)/export time.csv/time.pdf
  • Export data table. Data format: date time + temperature
