BlueWave Bendable 1.5 mm Diameter Bluetooth Data Logger


  • Part #:TS22BWTB11
  • Weight:74 g
  • Dimensions:70 h X 23 Ø (mm)
  • Units:each
  • Availability: Inquire

Price: $2,226.00
Price: $3,227.70


Description

The BlueWave Bendable Bluetooth data logger has a temperature range of -40°C ÷ +140°C with one channel with 30 cm bendable probe and 1.5 mm diameter. Receive data directly on your laptop (Bluetooth 5.0 required) or on your smartphone without additional accessories. Very easy to use: select the devices you need, start the acquisition, see the data in real time. You will no longer need cables and receivers or cumbersome interfaces and thanks to TS Manager 3 you can immediately analyze data and generate advanced reports.

The battery is user replaceable and is supplied with an Accredited traceable calibration certificate.



Features:

  • No receiver or accessories needed
  • Live data transmission
  • With bendable probe for easy positioning
  • Completely food grade and waterproof
  • All software calculate lethality value (F0, PU, A0 etc.)
  • Low battery consumption for an extended battery life (if used below -20°C the battery life could be significantly reduced)
  • User replaceable battery (software shows battery status)
  • Extremely easy to use
  • Possibility of application to any type of packaging
  • Accredited (NIST equivalent) traceable calibration certificate included
  • Available extended calibration from -40°C (order extra calibration points; in case of wide calibration range the accuracy might be worse. Request the possible calibration ranges in advance)
  • Extremely high accuracy and precision: with an accuracy of ± 0.1°C these devices can be used in any application involving pharmaceuticals, food & beverages, validation, laboratory and medical field
  • High accuracy even outside the calibration range
  • Fast response time thanks to the 3 mm diameter probe
  • Printed reports compliant with health regulations, HACCP and ISO



Specifications:



Dimensions

70 h X 23 Ø (mm)

Probe dimensions

Probe base dimensions 3 h X 14 Ø (mm) - Bendable probe 300/on demand l X 1,5 Ø (mm) (first and last 15 mm cannot be bent)

Weight

74 g

Materials

Stainless steel AISI316L, PEEK

Temperature range

-40°C ÷ +140°C

Standard calibration points (temperature)

25/50/75/100/121/140°C

Extra calibration points (temperature)

Within the range -40 °C ÷ +140 °C

Temperature resolution

0.01 °C

Temperature accuracy

± 0.1 °C (within the calibration range)

Memory (n. of acquisitions)

131.000

Acquisition step

From 1 every second up, with 1 second steps

Protection degree

IP68

Battery type

1 x 1/​2AA size 3.6 volt

Battery life

+4.000.000 acquisitions at 1 second step continuously (calculated time @25°C. Battery life may be shorter if used in low temperatures)

Communication

Bluetooth BLE 5.0

Frequency

2.4 GHz

IT Requirements

Windows Laptop Bluetooth 5.0

Real time mode

High Performance (secure reception, greater use of the battery), Normal (possibility of losing some data in real time, less use of the battery), standby (waiting for mission start)

Software

TS Manager 3



Additional Information

Ordering Instructions:


Part Number

Description

Pricing

TS22BWTB11

BlueWave Bendable 1.5 mm Diameter Bluetooth Data Logger

See Above

TS22BWTB1D

BlueWave Bendable on Demand 1.5 mm Diameter Bluetooth Data Logger

Call for Pricing

Optional Accessories

Part #: TS13TSM3
$2,450.00 (USD)
$3,552.50 (CAD)
The TS Manager 3 software provides validation, certification and qualification, mapping and everyday (more...)

Part #: TS22BWB
$84.00 (USD)
$121.80 (CAD)

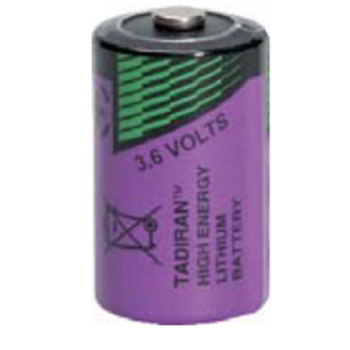

BlueWave battery is easily and quickly user replaceable too. New battery kits can be purchased (each (more...)

Part #: TS0200
$434.00 (USD)
$629.30 (CAD)
The DiskInterface HS (High Speed) is a connection bay used for downloading data and programming all (more...)

Part #: TS04MBU
$1,854.00 (USD)
$2,688.30 (CAD)
Universal multibay is a multiple connection bay used for downloading data and programming all models (more...)
