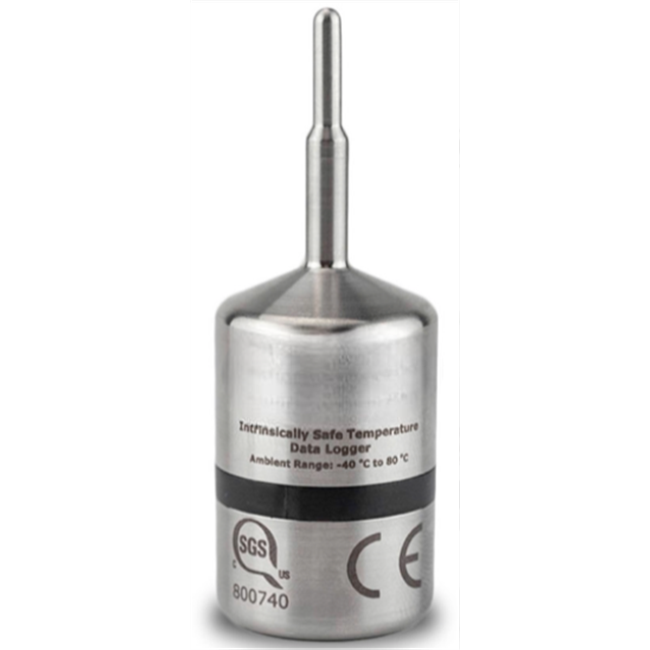

The Temp1000IS Submersible, Intrinsically Safe Temperature Recorder is a compact, temperature data logger that is SGS approved as intrinsically safe for hazardous environments. It is available with either a flush bottom or key ring end cap.
This device measures and records temperatures from -40 °C to
+80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C. It can store up to
32,767 time and date stamped readings, and is able to be programmed to start up
to 24 months in advance.
The Temp1000IS is compatible with the latest software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Specifications:
|
Memory |
65,536 Readings |
|
Reading Rate |
1 reading every second up to 1 reading every 24
hours |
|
Battery Life |
2 year typical at 15 minute reading rate |
|
Material |
316 Stainless Steel/Radel |
|
Dimensions |
2.66 in x .97 in dia. (67.6 mm x 24.6 mm dia.) |
|
Key Ring End Cap |
Key ring Thru-hole: 0.150" |
|
IP Rating |
IP68 |
|
Operating Environment |
-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to
100 %RH (case properly sealed) |
|
Required Interface Package |
IFC400 |
|
Approvals |
CE |
|
FM Class 3600, latest revision | |
|
FM Class 3610, latest revision | |
|
CAN/CSA-C22.2 No. 60079-0:15 | |
|
CAN/CSA-C22.2 No. 60079-11:14 | |
|
Temperature |
|
|
Temperature Sensor |
Semiconductor |
|
Temperature Range |
-40 °C to +80 °C (-40 °F to +176 °F) |
|
Temperature Resolution |
0.01 °C (0.018 °F) |
|
Temperature Calibrated Accuracy |
±0.5 °C (0 °C to ±55 °C), ±0.9 °F (32 °F to 131
°F) |
Model Options:
|
Part
Number |
Description |
|
SD902214-00 |
Temp1000IS 1
in Flush Bottom |
|
SD902215-00 |
Temp1000IS 2
in Flush Bottom |
|
SD902216-00 |
Temp1000IS
5.25 in Flush Bottom |
|
SD902217-00 |
Temp1000IS 7
in Flush Bottom |
|
SD902219-00 |
Temp1000IS 1
in Key Ring End Cap |
|
SD902220-00 |
Temp1000IS 2
in Key Ring End Cap |
|
SD902221-00 |
Temp1000IS
5.25 in Key Ring End Cap |
|
SD902222-00 |
Temp1000IS 7
in Key Ring End Cap |
