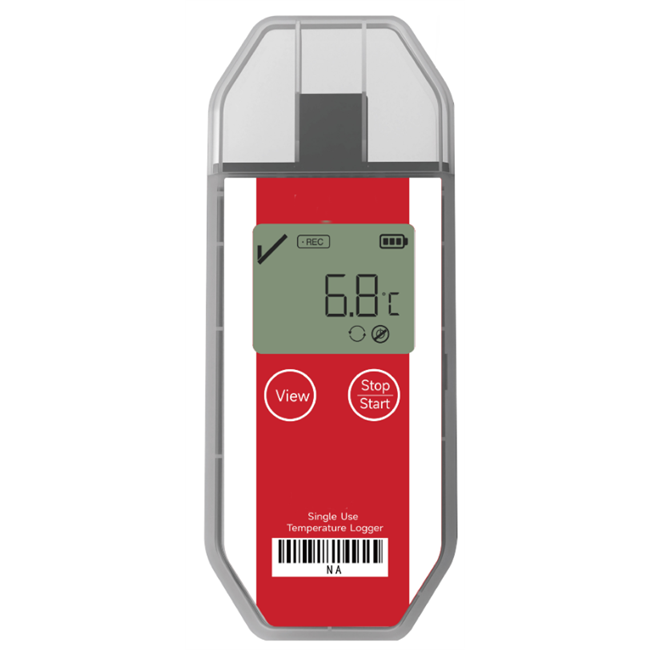

The recorder is equipped with an LCD display screen, which can view real-time temperature data. The factory parameters are pre-configured. After one-key activation, the temperature data of food, fresh food, medicine and other products during storage and transportation can be monitored and recorded.
Is widely used in all aspects of storage and logistics cold chain, such as
refrigerated containers, refrigerated trucks, refrigerated bags, cold storage,
laboratories, etc.
Features:
Specifications:
|
battery
life |
up to 180
days (shelf life 2 years) @ 25 ℃,5 minutes recording interval |
|
Measurement
range |
-30 ℃
~ 70 ℃ |
|
Measurement
accuracy |
± 0.5°C
@-10~40°C, ± 0.8°C @-30 ~-10°C & 40~70°C |
|
Resolution |
0.1°C |
|
recording
interval |
1 minute -24
hours (can be factory configuration) default 10 minutes |
|
alarm
point |
can set 4
high and low alarm points (alarm threshold and over-temperature trigger time
can be customized according to customer needs) |
|
Storage
capacity |
Up to 33,000
points @ Single PDF/CSV report，25,000 Points @PDF&CSV report |
|
Startup
delay |
0 minutes -24
hours (can be configured before factory) default 15 minutes) |
|
Start Mode |
Manual Start |
|
Report
Format |
PDF/CSV/PDF
& CSV (optional, factory configured) |
|
Protection
level |
IP65 |
|
Battery
Type |
3.0V CR2450 |
|
Connection
Mode |
USB2.0 |
|
Product Size |
105*40*10mm |
|
Product Weight |
30g |
|
Product
Certification |
CE,EN12830:2018,RTCA/DO-160G
,RoHS |
