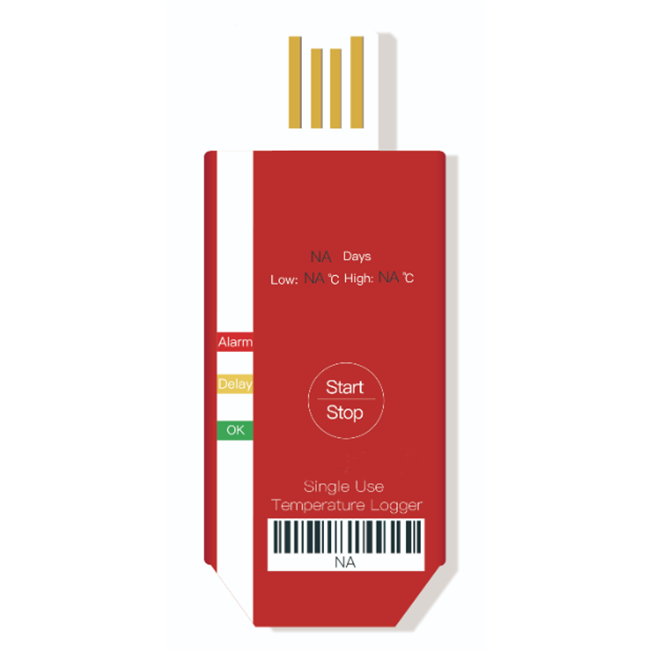

As a cost-effective record label, uses food-grade composite bags, which are completely waterproof. After one-click activation, it can be placed in the target monitoring environment to monitor and record the temperature of fresh food, medicine and other products during storage and transportation.
Is widely used in all aspects of storage and logistics cold chain, such as
refrigerated containers, refrigerated trucks, refrigerated bags, cold storage,
laboratories, etc.
Features:
Specifications:
|
LED
indicator |
Green（Recording，OK），Red（Alarm），Yellow（Start
Delay） |
|
battery
life |
Up to 2
years(1 year storage / 1 year useful life)@25℃, 5 minutes logging interval |
|
Measurement
range |
-30 ℃
~ 70 ℃ |
|
Measurement
accuracy |
± 0.5°C @-10~70°C,
± 0.8°C @-30 ~-10°C |
|
Resolution |
0.1°C |
|
recording
interval |
1 minute -24
hours (can be factory configuration) default 10 minutes |
|
alarm
point |
can set high
and low 2 alarm points (alarm threshold and over-temperature trigger time can
be customized according to customer needs) |
|
Storage
capacity |
Up to 33,000
points @ Single PDF/CSV report，25,000 Points @PDF&CSV report |
|
Startup
delay |
0 minutes -24
hours (can be configured before factory) default 15 minutes) |
|
Start Mode |
Manual Start |
|
Report
Format |
PDF/CSV/PDF
& CSV (optional, factory configured) |
|
Battery
Type |
3.0V CR2032 |
|
Connection
Mode |
USB2.0 |
|
Product Size |
70*34*7mm |
|
Product Weight |
23g |
|
Product
Certification |
CE,EN12830:2018,RTCA/DO-160G
(Aviation Safety Directive),RoHS |
